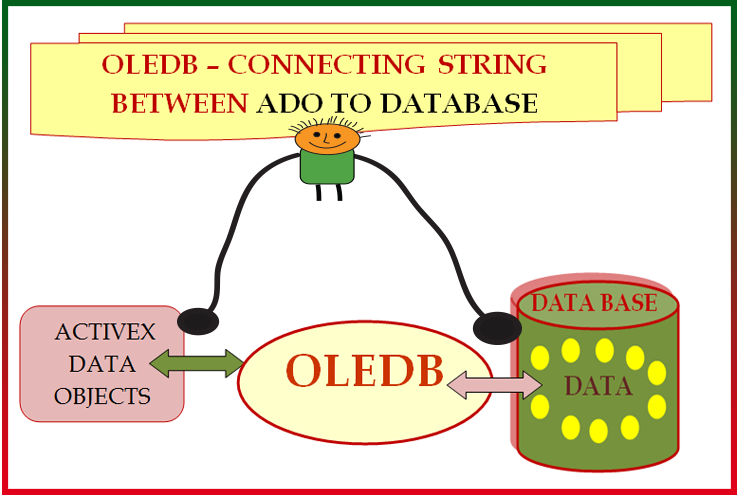

OLEDB Structure



  • From VBA if we want to connect to any database we have to use either DAO or ADO

    •





    DAO:

  • Stands for DATA ACCESSING OBJECTS

    •

  • It allows the user to communicate external with external Databases

    •

    ADO:



  • It stands for ACTIVEX DATA OBJECTS

    •

  • Designing structure of excel sheet consits of ROWS & COLUMNS, having resemble with DATABSE tables, hence we can consider excel sheet as database

    •

  • ADO allows to connect various databases like, Access,SQL,Excel....

    •

  • Through ADO it doesn't require to open source document

    •

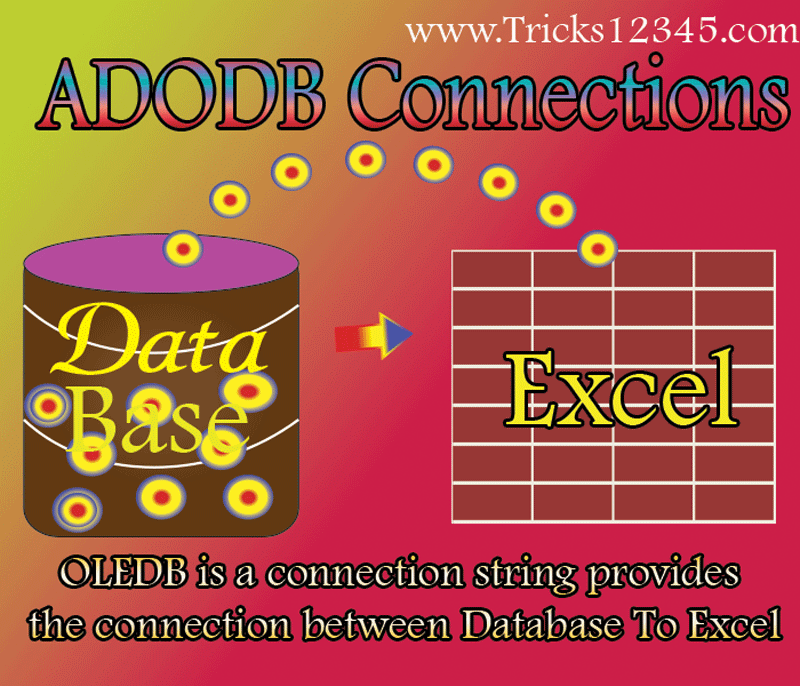

    ADO connects Databases with the help of OLE DB(A connecting string to communicate with Database)



  • ADO Connects to excel sheet, either of below mentioned OLEDB providers
  • It is used to connect Large Databases, it is very effective to provide connections with external databases

    •

    Microsoft JET OLEDB Provider

    (or)

    Microsoft OLE DB Provider for ODBC Drivers





  • Micorsoft JET OLEDB Provider
  • Excel File Version

    • Sub connect_to_Excel_Databases()
    Dim cn As ADODB.Connection
    Set cn = New ADODB.Connection
    With cn
    .Provider = "Microsoft.ACE.OLEDB.12.0"
    .ConnectionString = "data source=D:\Test.xlsx;" & _
    "Extended Properties=""Excel 12.0 Xml;HDR=NO"";"
    .Open
    End With
    End Sub





    Ways to write Queries:



    Dim Query As String
    Query = "Select * from [Data$]"



  • This is SHEET LEVEL Query, where sheet name = DATA

    •

  • It retrives all the records\tables exists in a worksheet having the name of DATA

    •



    Introduction video about this Templates



  • This video enunciates about the features of this tempate
  • It describes about how this template works

    •





    Retrieve all the records - STAR



  • It returns all the columns from DATABASE

    •





    Download Database



    Retrieve required columns



  • We need to mention the column names individually

    •





    Retrieve records using AND operator







    Excel as Database - WHERE Condition







    Excel as Database - OR Operator







    Excel as Database - IN Operator









    Excel as Database - BETWEEN Operator









    Excel as Database - LEFT Function









    Excel as Database - Date Range Report











    Download consolidated Queries template
